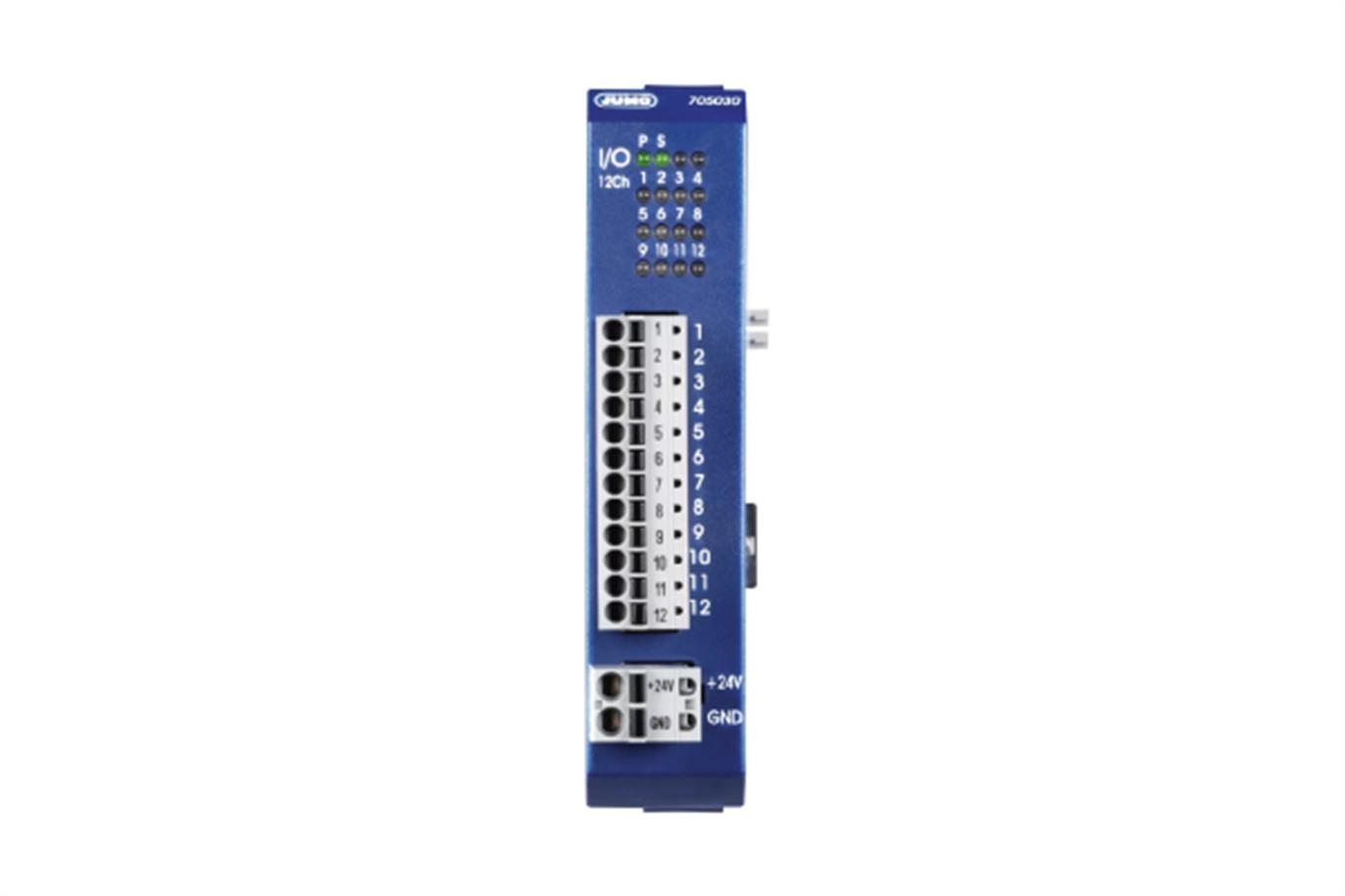

JUMO mTRON T 705030
Digital input/output module 12-channel
The module is equipped with 12 channels, which can be configured as digital inputs or digital outputs. The digitized input states are available in the system for further processing. The digital outputs are controlled via the system bus by digital signals.
 |
 |
 |
|
Freely selectable
input and output channels |
High load capacity
per digital output |
Convenient, flexible
planning of the plant |
GENERAL TECHNICAL DATA |
| Measurement inputs | 12 channels that can be configured individually as DC 24 V digital input or as DC 24 V digital output (max. 500 mA) |
| Special features | 12 digital, user configurable inputs or outputs, switching statuses are visualized with LEDs, external voltage supply for digital inputs/outputs via terminal on the front, automatic configuration after replacement of the module insert (Plug and Play), connection of inputs on the front, removable terminal strips with PUSH IN technology, fast wiring of operating voltage and system bus provided by simple module connection principle |
| Connection | Removable terminal strips with PUSH IN technology on the front |
| Voltage supply | DC 24 V +25/-20 %, external voltage supply for outputs on the front panel: DC 24 V +25/-20 % SELV |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Protection type | IP20 |
| Ambient temperature range | -20 to +55 °C |
| Dimensions (W × H × D) | 22.5 mm × 103.6 mm × 101.5 mm (without connection elements) |

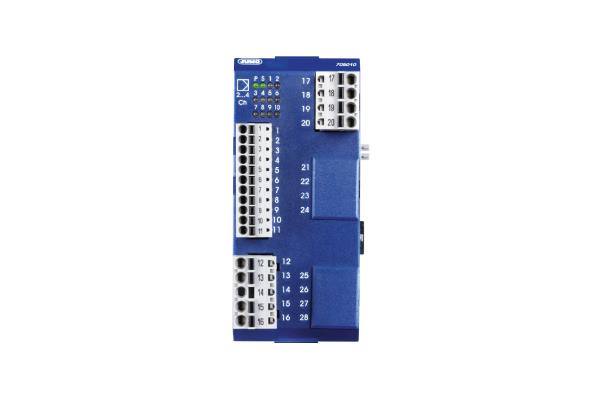

Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
 |
 |
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |

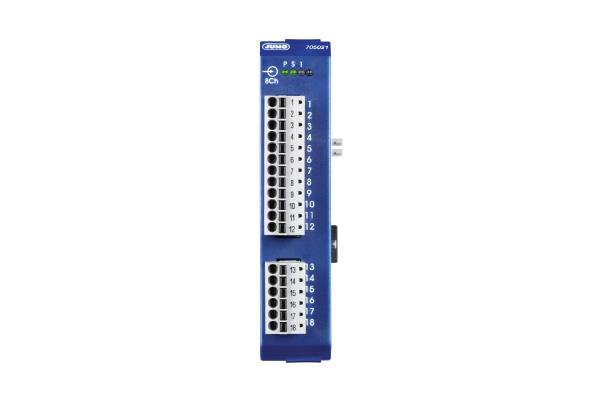

Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
 |
 |
|
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |

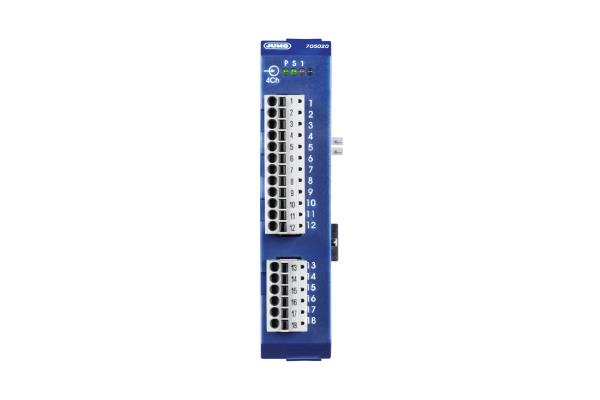

Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
|
|
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
