I/O modules
JUMO I/O modules stand for maximum flexibility and scalability in automation without compromising on accuracy and reliability. With numerous input and output modules, they enable customized configuration and optimal control processes. All modules can be seamlessly integrated into existing CODESYS system architectures from JUMO and other suppliers. A special USP is the unique controller module, which ensures maximum process reliability and autonomous operation. Request I/O modules now!
Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
 |
 |
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |
Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
 |
 |
|
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |
Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
|
|
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
Analog output module 4-channel
The analog output module 4-channel is equipped with 4 outputs. The output signal, 0(2) to 10 V or 0(4) to 20 mA, can be configured individually for each channel. The analog outputs are controlled via the system bus.
 |
|
|
|
Configurable behavior
in the event of malfunction |
Removable terminal
strips |
Connection of
outputs on the front |
Router module
The router module allows the automation system to be assigned freely and in a decentralized manner. The input and output modules can therefore be distributed across several DIN rails/control cabinets. The router modules can each be placed at distance of up to 100 m to one another/to the basic system.
 |
 |
 |
|
Decentralized module
assignment supported |
Supply of
operating voltage |
Fast wiring
|
Digital input/output module 12-channel
The module is equipped with 12 channels, which can be configured as digital inputs or digital outputs. The digitized input states are available in the system for further processing. The digital outputs are controlled via the system bus by digital signals.
|
 |
 |
|
Freely selectable
input and output channels |
High load capacity
per digital output |
Convenient, flexible
planning of the plant |
Relay module 4-channel
The relay module provides 4 relay outputs, which are controlled via the system bus by digital signals (assignment in the connection list or directly by the PLC). Each relay output is equipped with a changeover contact AC 230 V/3 A.
|
|
|
|
Automatic configuration
(Plug and Play) |
Connection of outputs
on the front |
Removable terminal
strips for each channel |
Power supply units
The special features of these DIN rail power supply units include their high level of efficiency and small size. Low sensitivity to transients and overvoltage as well as barely any electromagnetic radiation make usage possible in almost any environment.
|
 |
 |
|
Quick-connect
spring terminals |
Active power
factor correction |
Robust metal
case |

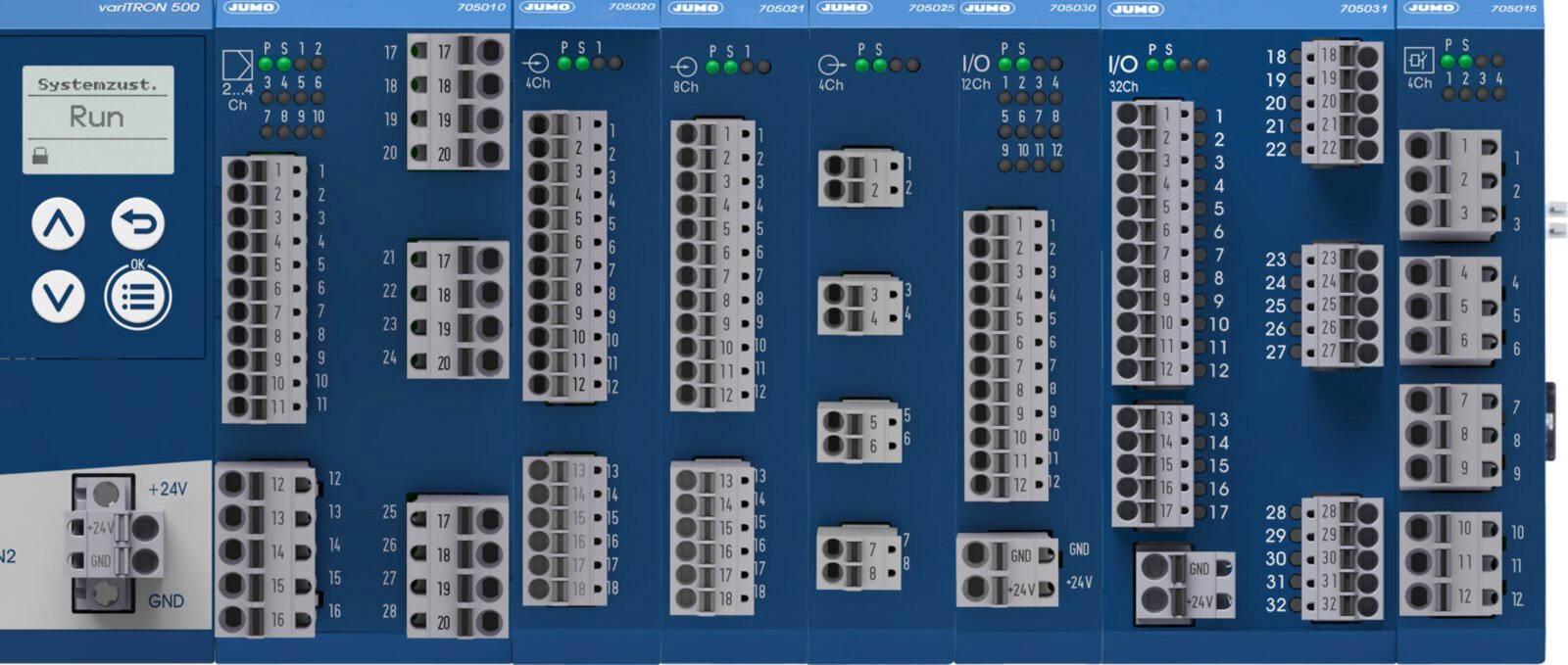

Module for JUMO variTRON automation system
The module offers 32 channels. Of these, 17 are configured as digital outputs by default. Up to 3 option cards with 5 channels each can be used to add digital inputs and outputs. The digital input signals can be further processed in the JUMO variTRON central unit. The digital outputs forward signals that are transmitted by the system bus.
|
|
|
|
Flexibly configurable
inputs and outputs |
High load capacity
per digital output |
Convenient, flexible
planning of a plant |
Module for automation system JUMO variTRON
The 2-port router module extends the central unit of the JUMO variTRON automation system by 2 system bus outputs. In this way, the system bus can be transmitted to router modules 3-port (705042) on other DIN rails in the same or in other control cabinets at a distance of up to 100 m. This makes it possible to distribute input and output modules and to decentralize the automation system.
|
|
|
|
Supports
decentralized module assignment |
System bus
expansion via 2 RJ45 sockets |
Fast wiring
|
Module for automation system JUMO variTRON
The router module 1-port is a system component of the JUMO variTRON automation system. The module 1-port is primarily used together with a variTRON 300 central processing unit. It laterally provides the system bus output and power supply for connecting the input and output modules.
|
|
|
|
Connection
to JUMO variTRON 300 |
Supply of
operating voltage |
Fast wiring
|
Module for automation system JUMO variTRON
With the 3-port router module, you can arrange the JUMO variTRON automation system in a decentralized and free way. It enables input and output modules to be distributed over several DIN rails or control cabinets. A maximum distance of 100 m is possible between 2 router modules or between the central unit and the router module.
|
|
|
|
Supports decentralized
module assignment |
Supply of
operating voltage |
Fast wiring
|
