Pressure

Hygienic process connection

The process connection connects the measuring device with an application-specific process connection adapter. Based on an easy-to-clean design and a cavity-free system, the adapter system is specifically tailored to the requirements of hygienic processes.

Any installation position	No microbial contamination	Modular adapter system

for pressure transmitters

Valve blocks can be used in connection with pressure measuring devices. They are used as a shut-off valve and for adjusting the zero point of the pressure measuring device.

2, 3, and 5-valve block	Relative, absolute, and differential pressure	Valves made of stainless steel

With screw-in thread DIN ISO 228/1 or ANSI B 1.201

Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.

Optionally available with capillary tube	Various process connections	2 screw-in threads available

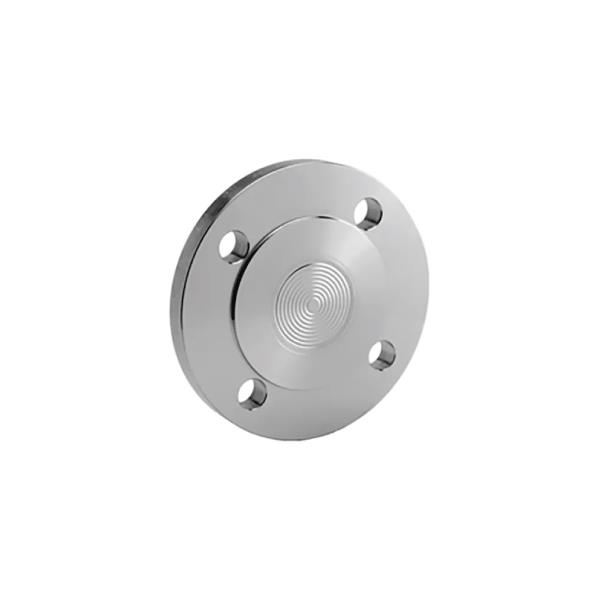

With flange connection according to ANSI B 16.5

Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media. This product has been designed according to ANSI B 16.5 and is available with a sealing strip type RF.

Optionally with tube	Optionally with PTFE coating	Various process connections

With membrane 4MDV-10

Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.

Flange connection or connection thread	Various process connections	Optionally with PTFE coating

With ISS/SMS/RJT socket and union nut

Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.

Various process connections	Optionally with capillary tube	ISS, SMS, RJT socket

With DRD flange or VARIVENT® socket

Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.

DRD flange or VARIVENT® available	Optionally with capillary tube	Various process connections

With clamp connection

Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.

Various nominal widths	Optionally with capillary tube	Membrane diaphragm seal or inline diaphragm seal available

For small measuring ranges

The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.

Long-term stability	Chemical resistance	High overload resistance

Digital low-energy pressure measuring cell

You can rely on the digital pressure measuring cell for relative pressure due to high degree of measuring accuracy and long-term stability. In addition, it is characterized by low energy requirements and can therefore be operated with battery voltage. The active module is ready for immediate use and saves expensive calibration systems due to prior calibration and temperature compensation by JUMO.

Low energy requirements	Calibrated and temperature compensated	Digital I²C interface

For OEM applications

The product records relative and absolute pressure between 0 to 350 mbar and 0 to 100 bar. The measuring principle is based on piezoresistive measurement technology with a silicon semiconductor thin-film strain gauge here. The measuring cells can be used within the entire OEM range.

Low-resistance UW glass	Quick measurement results	Low investment costs

Pressure transmitter

This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal. It uses the thick film strain gauge measuring principle based on an aluminum oxide ceramic material (Al2O3). It is used in particular in mechanical and plant engineering.

Low investment costs	Has different output signals	Long-term stability + overload resistance

Pressure transmitter

The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.

High degree of process reliability	Long-term stability	High overload resistance

Process pressure transmitter

The product measures the relative and absolute pressure of gases, steam, and liquids. Front-flush process connections are available to meet hygiene requirements. The transmitter is used several industries, including food and pharmaceutical. It is also suitable for hydrogen applications in electrolyzers, synthesis plants. and mobile fuel cells.

Explosion protection [Ex ia]	Long-term stability of < 0.1 % per year	Deviation from characteristic line of 0.05 %

Innovative precision pressure transmitter with display

The device is used to acquire relative and absolute pressures in liquid and gaseous media. The measuring ranges are between 0.1 to 100 bar relative or 0.4 to 60 bar absolute. In addition to high process reliability and a rotatable housing, the JUMO DELOS S02 stands out with its real-time data transmission via Single Pair Ethernet or IO-Link interface. The intelligent pressure sensor is configured via Bluetooth with the JUMO smartCONNECT app.

Simple configuration	High degree of process reliability	High degree of accuracy

Precision pressure transmitter with switching contacts and display

The product is equipped with an electronic pressure switch with analog output and is specially designed for use on test benches, in laboratory areas, and for special machine construction. The default nominal values are between 160 and 600 bar.

Flexible instalinstallation position	High bursting safety	Simple configuration

Pressure sensor with IO-Link

The pressure sensor measures relative and absolute pressure in liquids and gases. The device is equipped with an IO-Link interface according to specification 1.1. As a result, the pressure sensor is suitable for use in plant and mechanical engineering for connecting to automation systems.

Reduction of the startup times	Increased plant efficiency	High process reliability

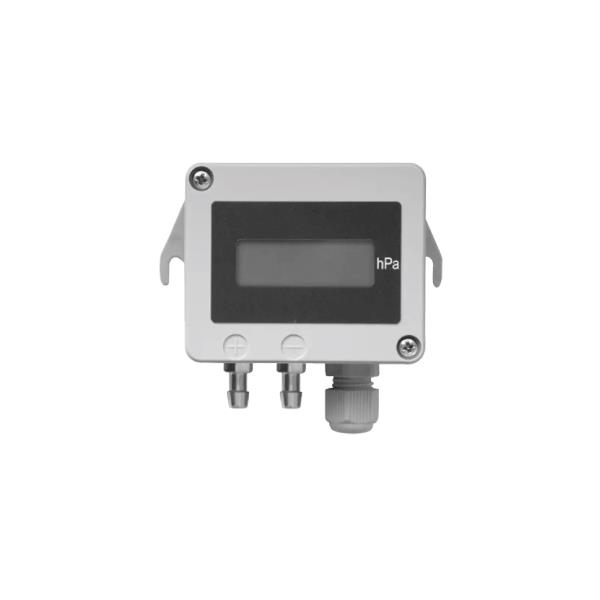

For non-aggressive gases

The product enables differential pressure measurement in non-aggressive gases. Permanent overpressure protects the process from dust penetration. The transmitter is mainly used in cleanrooms.

Minimal installation effort	6-way DIP switch	LCD display with plug system

OEM pressure transmitter for basic applications

This pressure transmitter is a basic product and acquires the relative pressure of liquid as well as gaseous media. The ceramic sensor has a long-term stability of under 0.2 %. It is used in particular in mechanical and plant engineering.

Application under high vibration load	Wide selection of measuring ranges	Fast installation due to terminal technology

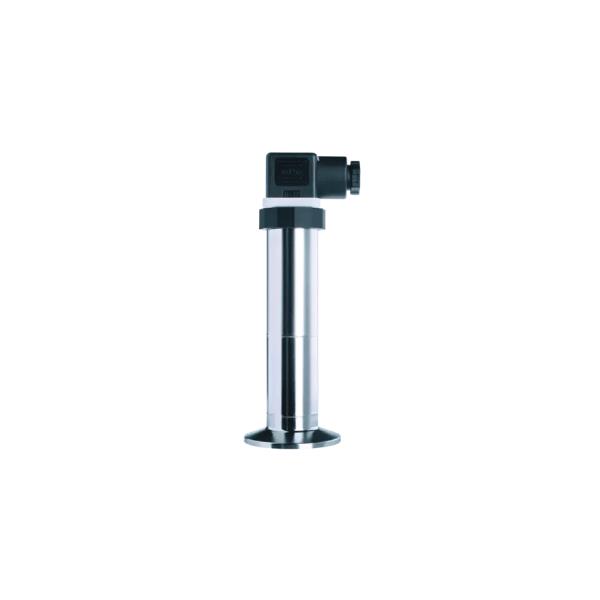

Hygienic pressure transmitter

The device is designed according to the hygienic requirements for precision measurement and a long lifecycle. It offers process reliability through a high degree of accuracy, even over a wide temperature range. The measuring ranges are between 0.1 and 100 bar rel. pressure or between 0.25 and 40 bar abs. pressure. The transmitter is used is the food and pharmaceutical industry.

Hygienic process connections	High process reliability	Zero point correction using a magnet

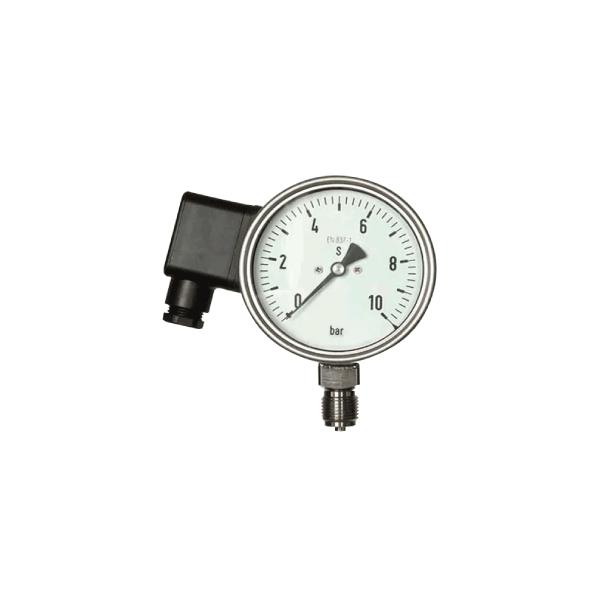

With analog actual value display

The product acquires measuring ranges from -1 to +400 bar. It is mainly used in the chemical and process engineering industry as a combination between an on-site analog display with an analog standard output signal for remote transmission.

Fail-safe pressure gauge function	Parts in contact with medium made of stainless steel	Welded measuring system without seal

Pressure transmitter for increased medium temperatures

The product acquires either the relative or absolute pressure of liquid and gaseous media and transforms it into an electrical signal. The transmitter is made entirely of stainless steel and has a hygienic design. It is mainly used in the food and pharmaceutical industry.

A wide range of process connections	Piezoresistive high-temperature measuring cell	For temperatures up to 200 °C

Differential pressure transmitter with flameproof enclosure

The product measures the differential pressure of gases, steam, and liquids. The version [Ex d] (flameproof enclosure) can be mounted up to zone 0. The transmitter can be programmed and customized as required. The transmitter with flameproof enclosure is used in such places as power plants.

Long-term stability of < 0.1 % per year	Operation in the Ex area via rotary knob	Deviation from characteristic line of 0.05 %

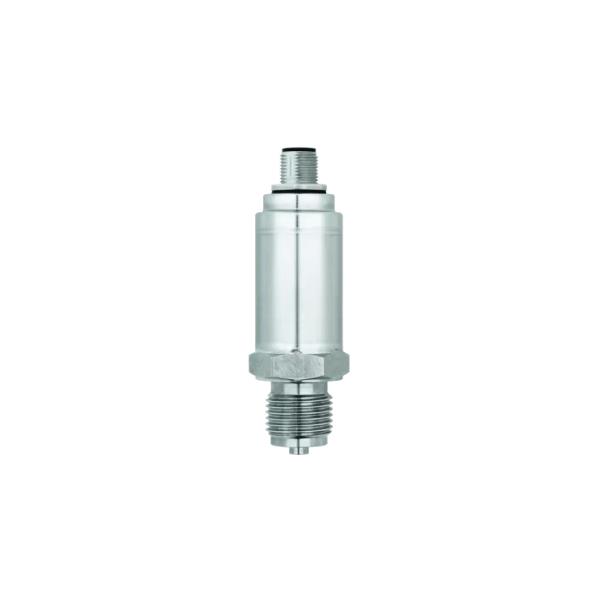

Miniature pressure transmitter for Ex areas

The miniature pressure transmitter measures the relative and absolute pressure of gases, steam, and liquids based on the piezoresistive measuring principle. It is completely welded and is particularly suitable for use in explosion-proof areas. Including oil, fuel, or gas plants.

Compact design type	ATEX and IECEx approval	Static and dynamic measurements

OEM pressure transmitter for low pressure applications

This pressure transmitter is completely welded and designed for use in harsh conditions. It can also be used for level measurement. The applied silicon sensor is extremely resilient.

Parts in contact with media are made of stainless steel	Straightforward mounting	Low investment costs

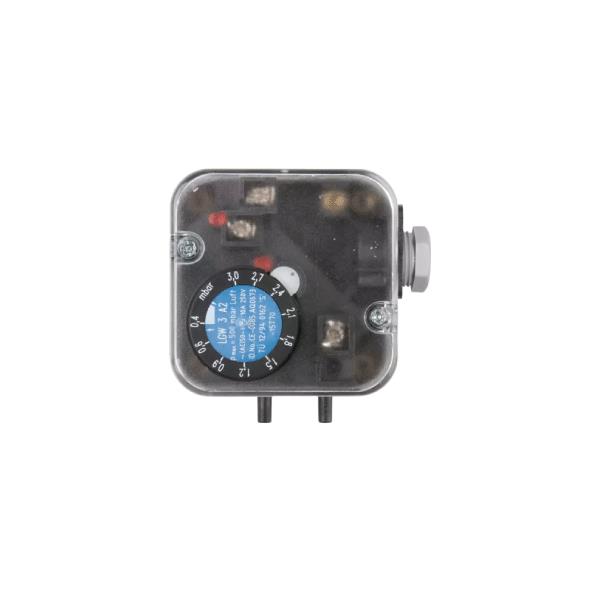

For air, smoke, and exhaust gases

The type 4 ADS product acquires the negative pressure, overpressure, or differential pressure of air, smoke, and exhaust gases in ventilation, air-conditioning, and filter systems. It is suitable to switch a current circuit ON, OFF or change it over, when the actual value changes in relation to the setpoint value.

TÜV test as pressure monitoring	Protection type: IP54 IEC 529 (EN 60529)	Additional air-conditioning set for mounting

For non-aggressive gases

The type 4304 product acquires the negative pressure, overpressure, or differential pressure of non-aggressive gases. Upon request, the device can be equipped with an LCD display. The transmitter is mainly used in heating engineering, air-conditioning, and ventilation technology.

Precise compensation	Wide range of measuring ranges	Wear-free inductive measuring system

Pressure transmitter

The product acquires the relative pressure in dry, non-corrosive, and non-ionizing media and transforms it into an electrical signal. The basis is the piezoresistive measuring principle. The pressure transmitter is mainly used in lab technology and cleanroom technology.

A wide range of process connections	Overload resistance	Long-term stability

Differential pressure transmitter

The product acquires the differential pressure in liquid as well as gaseous media and transforms it into an analog output signal. The transmitter is mainly used for filter monitoring.

Various output signals	Silicon sensor	Low investment costs

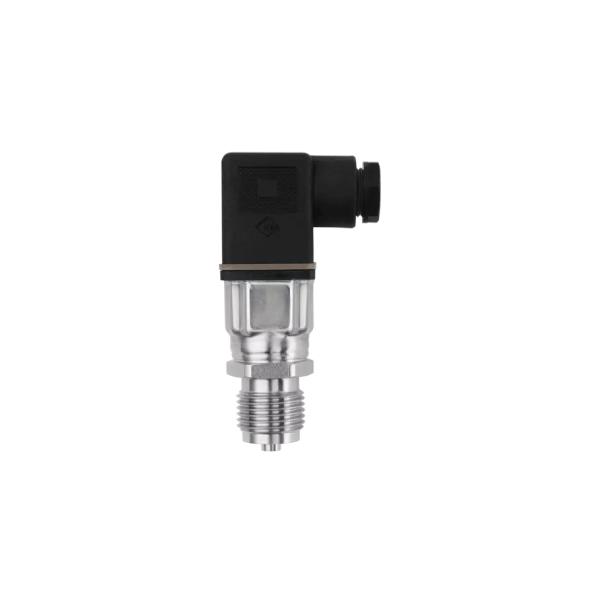

OEM pressure transmitter for seawater applications

This pressure transmitter features a hysteresis-free ceramic measuring cell and a titanium case. This protects it against organic acids and solutions containing chloride. It is used in particular in ship building and laboratory engineering.

No filling oil leaks in the event of a burst	Compact design type	Long-term stability < 0.2 % of end value

Process pressure transmitter with a flameproof enclosure

The product measures the relative and absolute pressure of gases, steam, and liquids and can be mounted up to zone 0. Front-flush process connections are available to meet hygiene requirements. The transmitter is used in such places as power plants.

Operation in the Ex area via rotary knob	Explosion protection [Ex ia]	Long-term stability of < 0.1 % per year

Differential pressure transmitter

The product measures the differential pressure of gases, steam, and liquids. The version [Ex ia] can be mounted up to zone 0. The transmitter can be programmed and customized as required. One application is in the chemical and petrochemical industry.

Long-term stability of < 0.1 % per year	Deviation from characteristic line of 0.05 %	Any installation position

Pressure transmitter and level probe for Ex areas

The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.

High overload resistance	Numerous process connections	Reverse-polarity protection

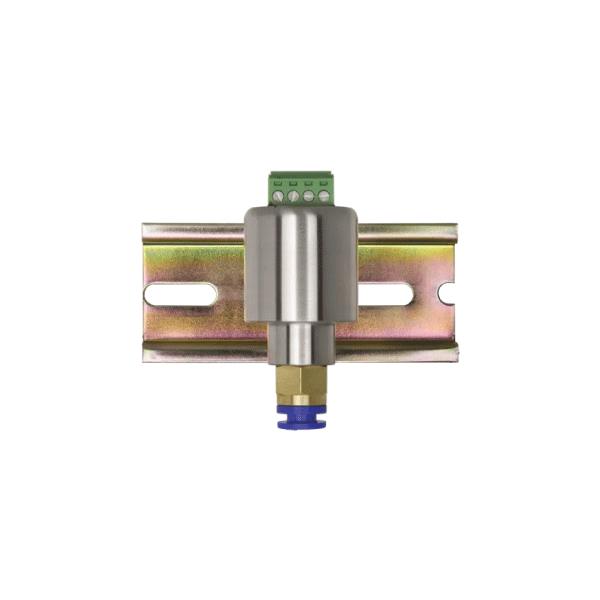

Pressure transmitter for control cabinet mounting

This pressure transmitter is the plant control cabinet variant of the basic JUMO MIDAS product. It acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal.

Simple mounting using terminal block	Ceramic thick film sensor (Al2O3)	Low investment costs

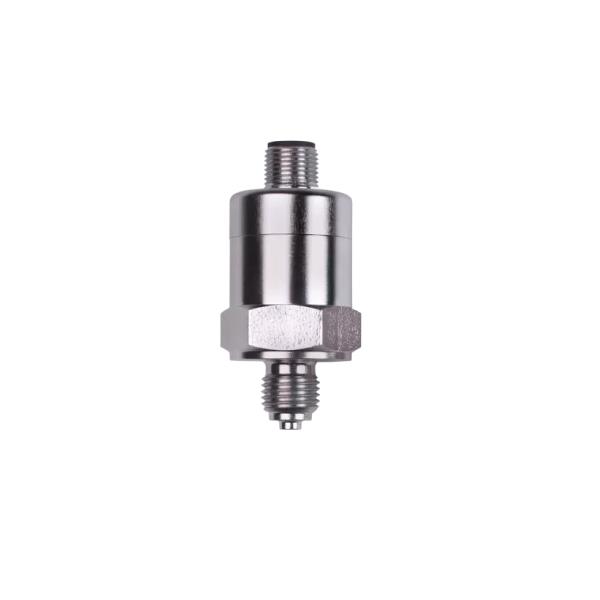

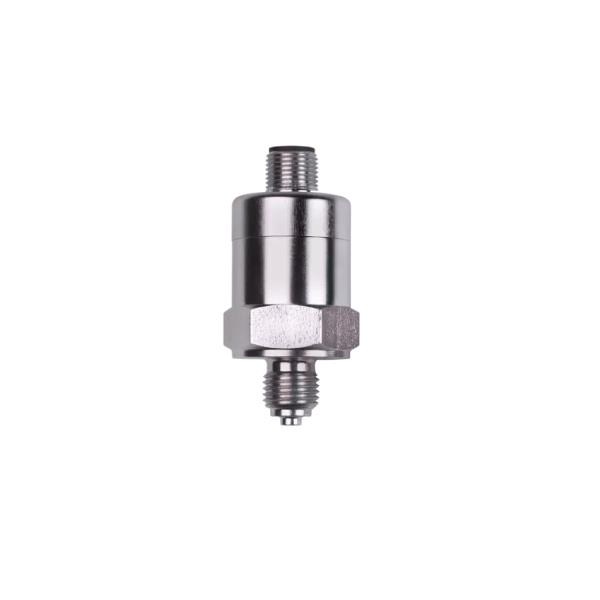

Pressure transmitter with CANopen output

The product acquires either the relative or absolute pressure of liquid and gaseous media. It digitizes the pressure value and makes it available for further use through the "CANopen" serial bus protocol. The pressure transmitter is used in such environments as wind power plants.

Flexible installation position	High process reliability	Homogenous parameterization

Process pressure transmitter with SIL/PL

The pressure transmitter reliably and accurately measures differential pressure of liquids, steam, and gases. It was developed for use in safety-related plants with Safety Integrity Level (SIL) according to DIN EN 61508. As a result, the transmitter is perfectly suited for safety measuring chains in the process industry and mechanical engineering.

Safety Integrity Level (SIL 2/SIL 3), PL c/PL d	Long-term stability of < 0.1 % per year	Linearity: 0.05 %

OEM pressure transmitter

This pressure transmitter acquires the relative and absolute pressure of gaseous and liquid media and transforms it into an electrical signal. One of the application areas in which it is used is aggressive media.

Low investment costs	Design protects against leaking filling oil	Different process connections

OEM pressure transmitter – maritime approved

Depending on customer requirements, the product is available as a relative or absolute pressure transmitter. It meets the requirements of Environmental Category C, EMC 2 according to DNV GL directives. The pressure transmitter is mainly used in shipbuilding.

Silicon sensor	Measuring system without seal	Minimal installation effort

Pressure transmitter with CANopen output

The product acquires either the relative or absolute pressure of liquid and gaseous media. It digitizes the pressure value and makes it available for further use through the "CANopen" serial bus protocol. The pressure transmitter is used in such environments as wind power plants.

Flexible installation position	High process reliability	Homogenous parameterization

Process pressure transmitter with SIL/PL

The pressure transmitter reliably and accurately measures relative and absolute pressure of liquids, steam, and gases. It was developed for use in safety-related plants with Safety Integrity Level (SIL) according to DIN EN 61508. As a result, the transmitter is perfectly suited for safety measuring chains in the process industry and mechanical engineering.

Safety Integrity Level (SIL 2/SIL 3), PL c/PL d	Long-term stability of < 0.1 % per year	Linearity: 0.05 %

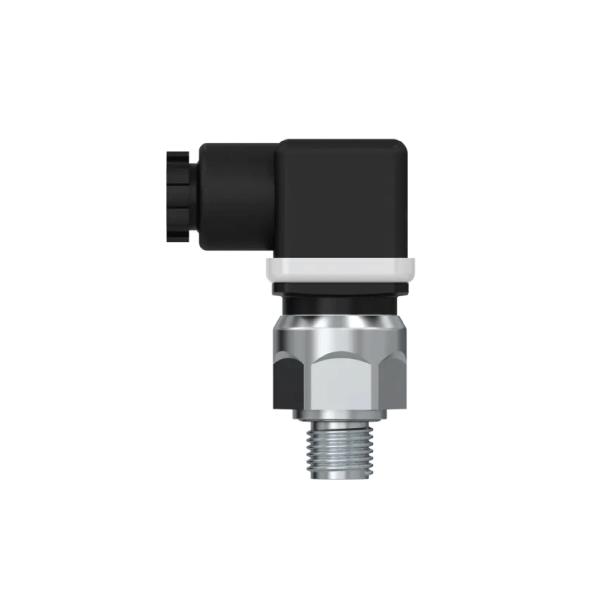

Pressure transmitter − Compressed Air

The JUMO MIDAS C12 CA is designed as a pressure transmitter especially for requirements in the field of compressor pressure measurement. The ceramic sensor detects relative pressures which provides a reliable and long-term stable signal.

Custom fit design for compressor area	No service or maintenance required	Simple startup due to standardization

OEM pressure transmitter for universal applications

This pressure transmitter acquires the relative and absolute pressure. The measuring system is fully welded and can be used for all media. The silicon sensor is resistant to overloading even in the lowest measuring ranges. It is mainly used in mechanical and plant engineering and is also suitable for hydrogen applications in electrolyzers, synthesis plants, and mobile fuel cells.

Modular structure	Minimal installation effort	Resistant to overload and with long-term stability

Precision pressure transmitter

The pressure transmitter is used to measure relative and absolute pressures in liquid and gaseous media. It offers high process reliability through maximum accuracy as well as over a wide temperature range. The measuring ranges are between 0.1 and 100 bar rel. or 0.6 and 40 bar abs. The precision transmitter is used, among other things, in mechanical and plant engineering.

High process reliability	Zero point correction using a magnet	High accuracy

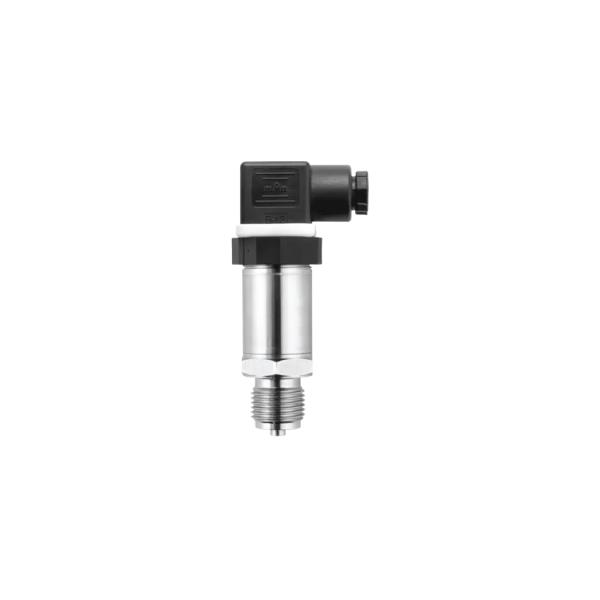

OEM pressure transmitter for railway applications

This pressure transmitter has a completely welded measuring system without a seal and has been specifically designed for use in rail vehicles. The applied silicon sensor is extremely resilient even at low measuring ranges.

DIN EN category 1B	For the highest EMC requirements	Vibration and shock-resistant

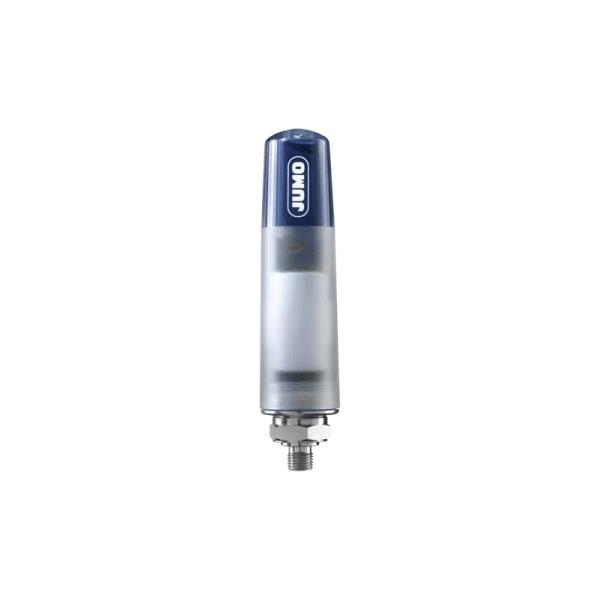

Pressure transmitter with wireless data transmission

The product acquires the pressure of liquid or gaseous media in combination with a Wtrans receiver. The measured values on the receiver are provided in a digital format and as an electrical signal. The product is used in instances where laying a cable would be too demanding.

Easy-to-use setup program	Wireless transmission up to 300 m	Linearization with up to 40 value pairs

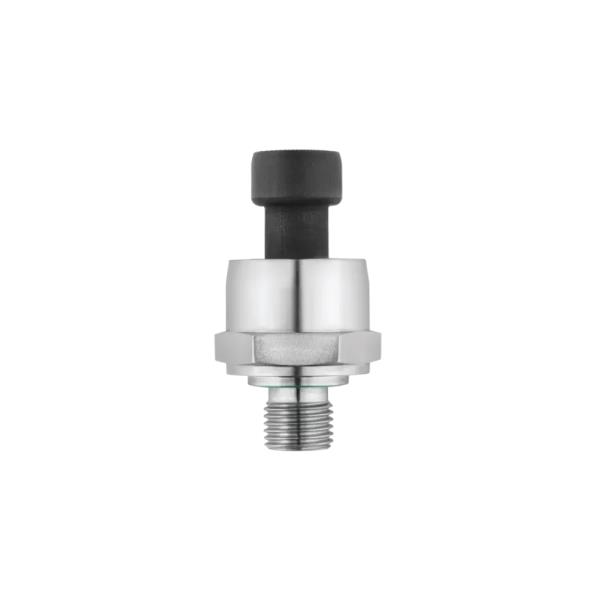

OEM pressure transmitter for high pressure applications

This pressure transmitter is used for measuring the pressure of liquid and gaseous media. The product works on the basis of the thin-film measuring principle and transforms the pressure into a voltage or current-based electrical standard signal. It is mainly used for high-pressure applications in commercial vehicles.

Various plug variants	High insulation voltage	Vibration and shock resistance

Pressure transmitter for use in Ex areas

The product measures the relative and absolute pressure of gases, steam, and liquids on the basis of the piezoresistive measuring principle. It is completely welded and is particularly suitable for use in explosion-proof areas. Including oil, fuel, or gas plants.

Reverse-polarity protection	Minimal installation effort	ATEX approval

Digital pressure measuring cell

The pressure measuring cell provides a temperature compensated and calibrated digital/analog output signal. The piezoresistive sensing element with integrated signal processing is hermetically encapsulated. It ensures stable, precise linearity and accuracy values even under adverse conditions.

Low-resistance UW glass	Quick measurement results	Low investment costs

DIN EN 1092-1 with sealing strip type B1

Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media. This product has been designed according to DIN EN 1092-1 and is available with a sealing strip type B1.

Optionally with tube	Various process connections	Optionally with PTFE coating
